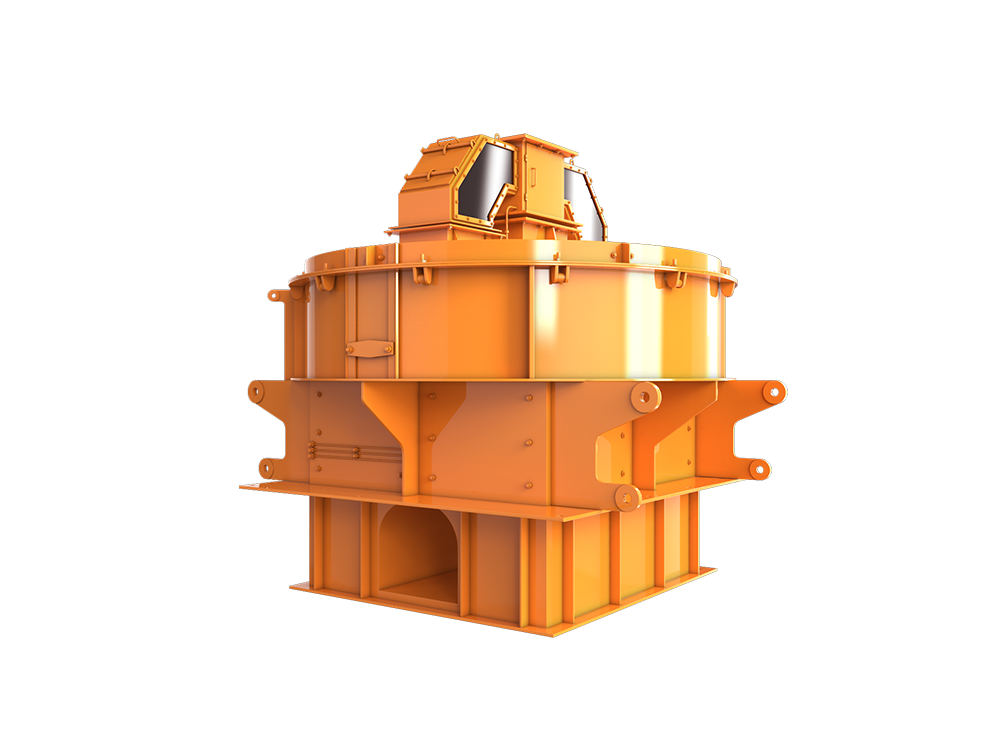

SCB Vertical Shaft Impact Sand Making Machine Series

Product Description

Vertical Shaft Impact Crusher of XINGVE SCB series adopts the world-class technology and equipment, and is developed and  produced with a high-tech level. It is an example of perfect combination of professional technology and mechanical manufacturing and a full embodiment of new technology and new process. It is widely used in highway, railway, construction, municipal  engineering concrete mixing station to produce high-quality aggregate, and has become the core equipment of machine-made  sand industry and stone shaping field.

Main parts of this machine

1、Dust circulation system 2、Hopper 3、Feeding pipe 4、Crushing cavity 5、Rotor 6、Frame 7、Shaft system 8、Host pulley

Characteristics

1、Excellent crushing performance.

2、The wearing parts have long service life, and special high-chromium iron and super hard alloy are used to reduce the  use cost.

3、High treatment capacity and large output.

4、One machine is multi-purpose and flexible in application, realizing the conversion of "stone striking stone" and "stone  striking iron".

5、Product has excellent grain shape.

6、Low noise, low vibration, patented unique air self-circulation system, reduced dust, which is conducive to environmental protection.

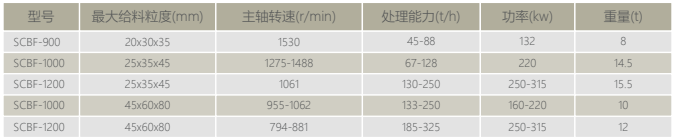

Technical Data Sheet
