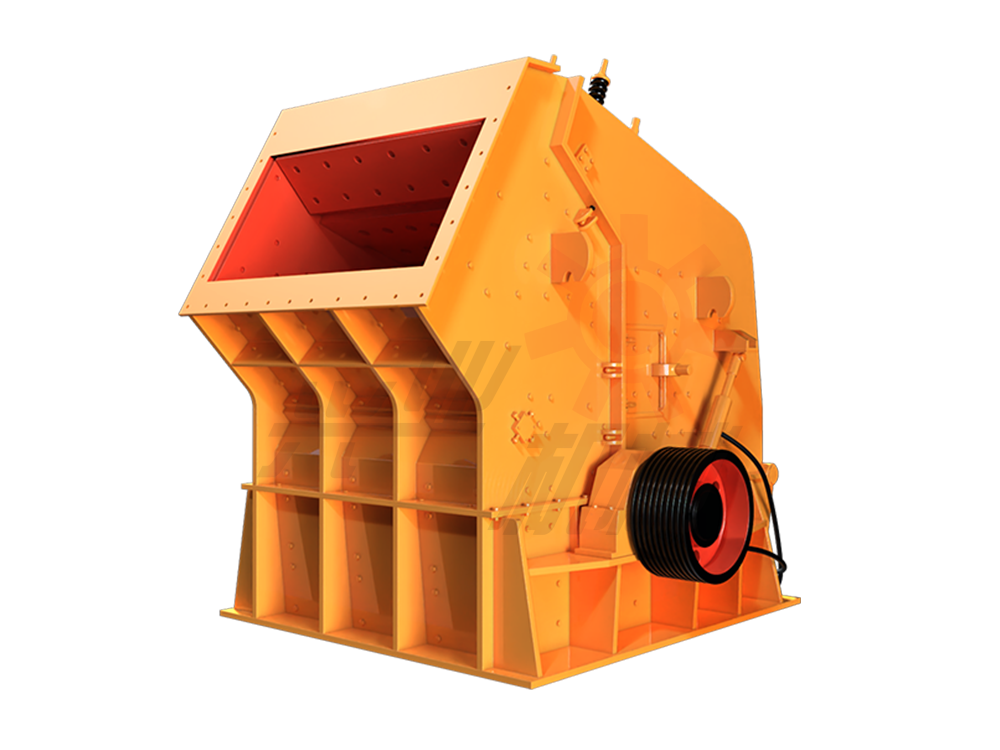

Impact Crusher Series

Product Description

The product of this series has two-stage impact plate and three-stage impact plate, can handle materials with side length of less  than 100-800 mm, and is available for crushing medium-hard materials. Its compressive strength can reach 350 Mpa. The  discharging grain size is smaller, the material grain size is good, and the grain is cubic. The rotor parts are carefully made, and  the rotor dynamic and static balance is good. The machine runs smoothly with low noise.

Main parts of this machine

1、Frame 2、Adjusting device 3、Lining plate 4、Rotor

Characteristics

1、Unique design and good crushing effect

2、Excellent rotor structure design

3、The impact frame is adjustable, convenient and flexible

4、Selecting the most durable part materials

5、Good frame opening structure design

6、High quality welding technology

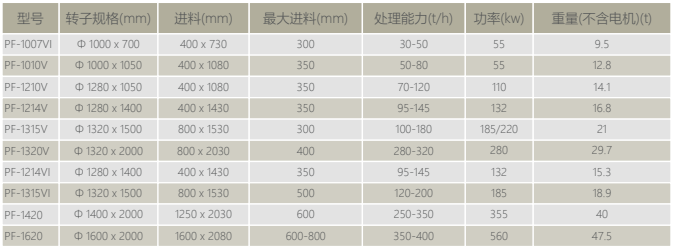

Technical Data Sheet
