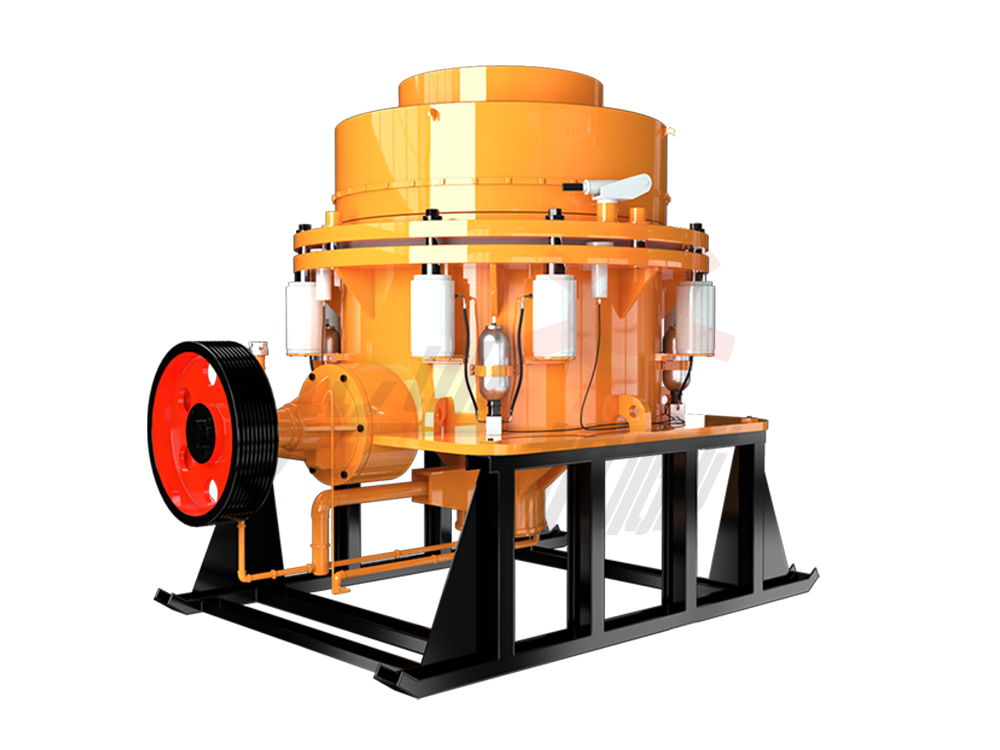

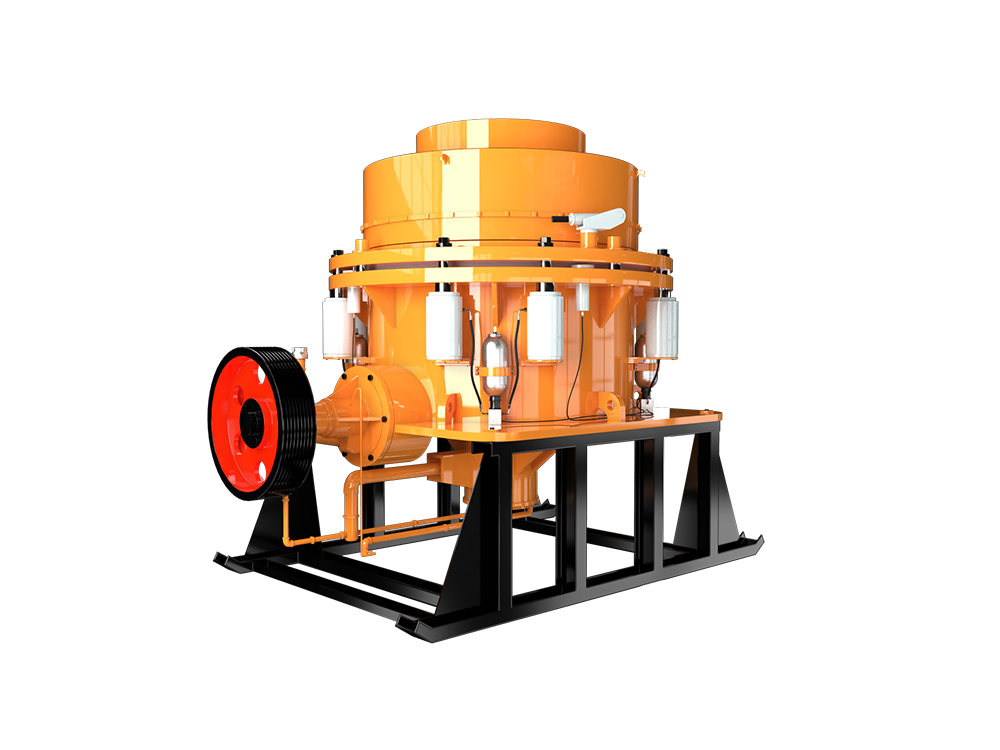

Complex Cone Crusher

Product Description

Our company, s Complex Cone Crusher is usually used in  secondary crushing and tertiary crushing. It adopts the best  combination of crushing frequency and eccentric distance,  which makes the material to be crushed more finely, has  higher crushing capacity than similar models, and has more  crusher cavities of each specification. According to different  needs, users can choose different cavity types. It’s widely  used in metallurgical industry, building materials industry,  road construction industry, chemical industry and other  fields. It is available for crushing various ores and rocks with  medium and above hardness.

Main parts of this machine

1、Lining plate part 2、Frame part 3、Support sleeve part 4、Adjusting sleeve part 5、Transmission part 6、Eccentric sleeve part  7、Bowl-type bearing part 8、Crushing cone part 9、Hydraulic cylinder part  10、Host pulley

Characteristics

1、Great crushing force, good grain shape, high efficiency and high processing capacity.

2、In medium and large size crusher, adopted the hydraulic chamber system, reduce downtime.

3、The cavity type is diversified to meet the different needs of users.

4、Sealed with grease.

5、The spring (or hydraulic) safety system is adopted.

6、It is convenient to adjust the discharge port.

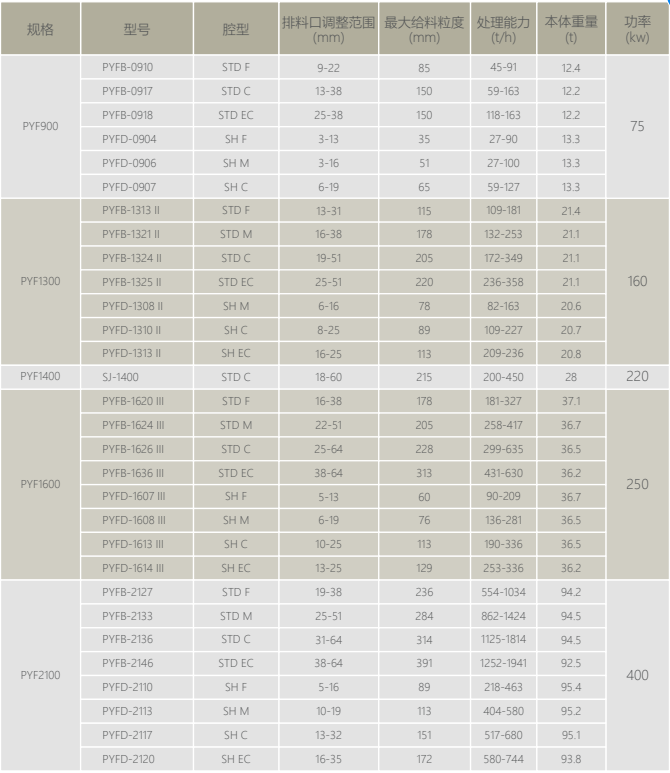

Technical Data Sheet
